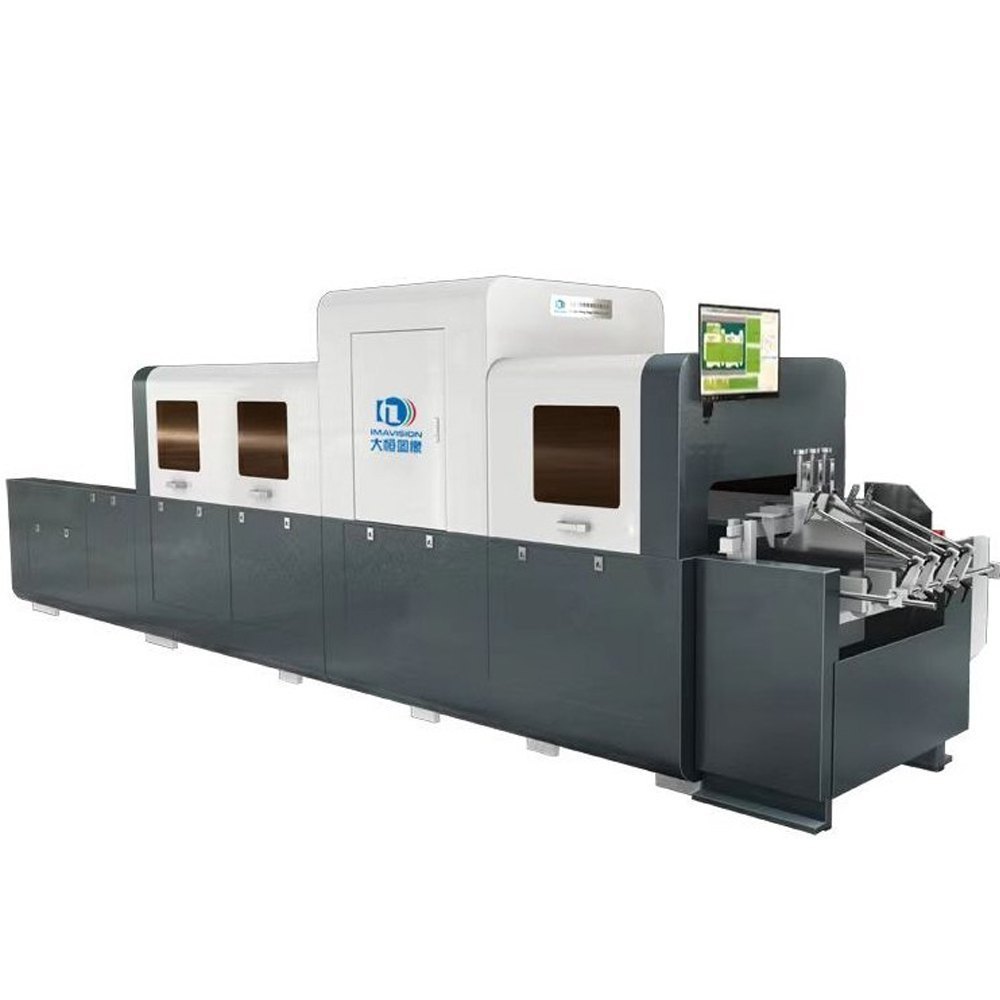

Inspection Machine for Carton Print Quality

Print Quality Carton Inspection Machine

This is an 'End of the Process' inspection of cartons before folding and gluing.

SPECIFICATIONS

  • Max. inspection sheet size (W*L): 420mm X 350mm
  • Min. inspection sheet size (W*L): 90mm X 90mm
  • Paper quality: 90-500g/m2
  • Max. inspection speed: 220m/min
  • High contrast: W≧0.1mm L≧5mm
  • Low contrast: W≧0.2mm L≧5mm
  • Min. color variance ( △ E): △E ≥ 3
  • Min. registration deviation: ± 0.1mm
  • Accepted products handling: Shingle stream module, direct output, counting module
  • Rejected products handling: Shingle stream module, curve output (right side)
  • Dimension (L*W*H): 6,262mm X 1,490mm X 1,850mm
  • Gross Weight: 3,500kg
  • Total power: 10 kw
  • Power and air supply: AC380V/50Hz 0.7~0.8MPa Standard workstation 1 (4K color line-scan camera)
  • Print & foil-stamping inspection workstation: Dirty spot, splash, color deviation, ink streak, missing print, mis-register, scratch, die-cutting deviation, foil stamping deviation and omission, etc. Standard workstation 2 (8K monochrome line-scan camera)
  • Embossing & varnishing inspection workstation: Embossing deviation, indentation deviation, severe laminating scratch and air bubble in lamination and paper wrinkles, etc.
