Rigid Box Making

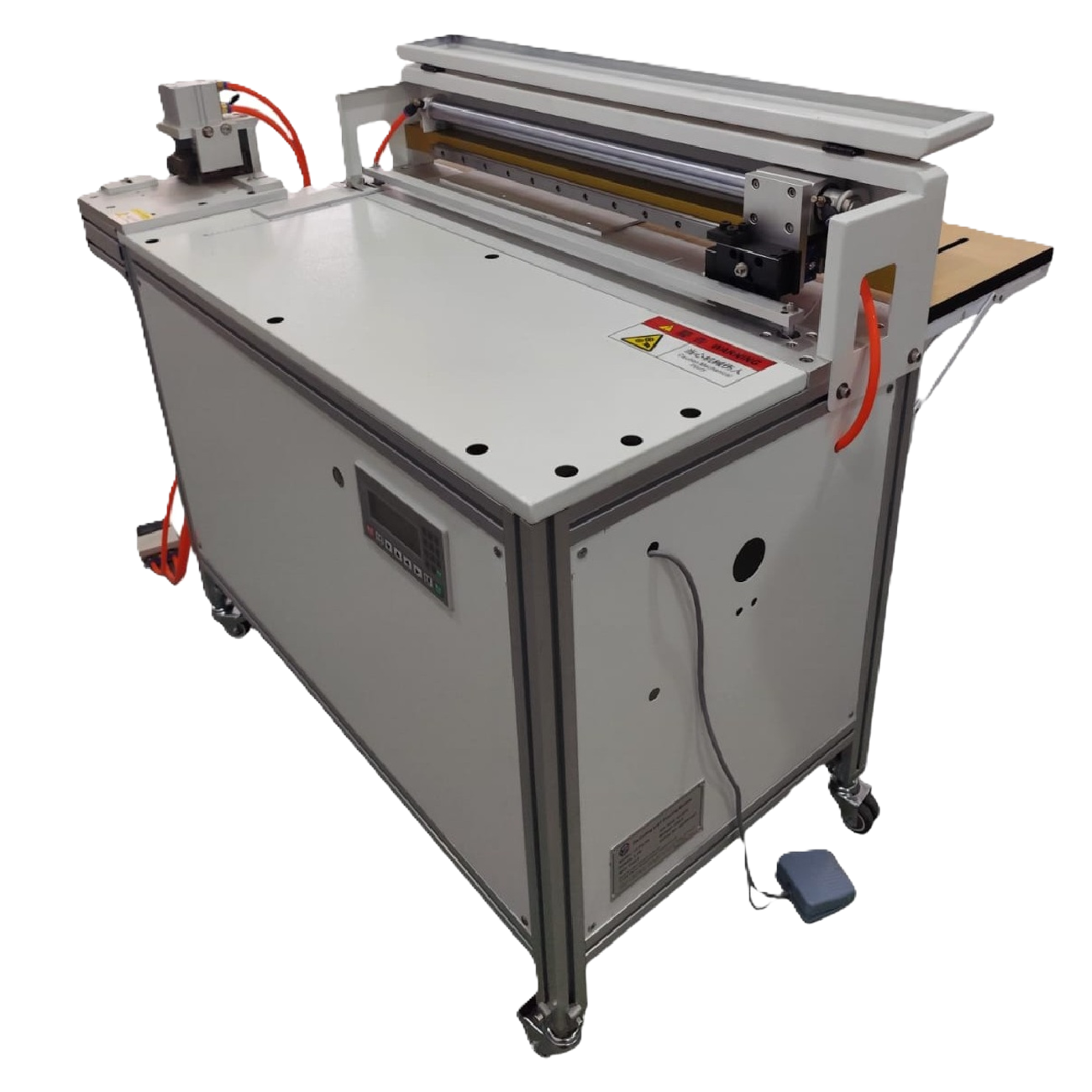

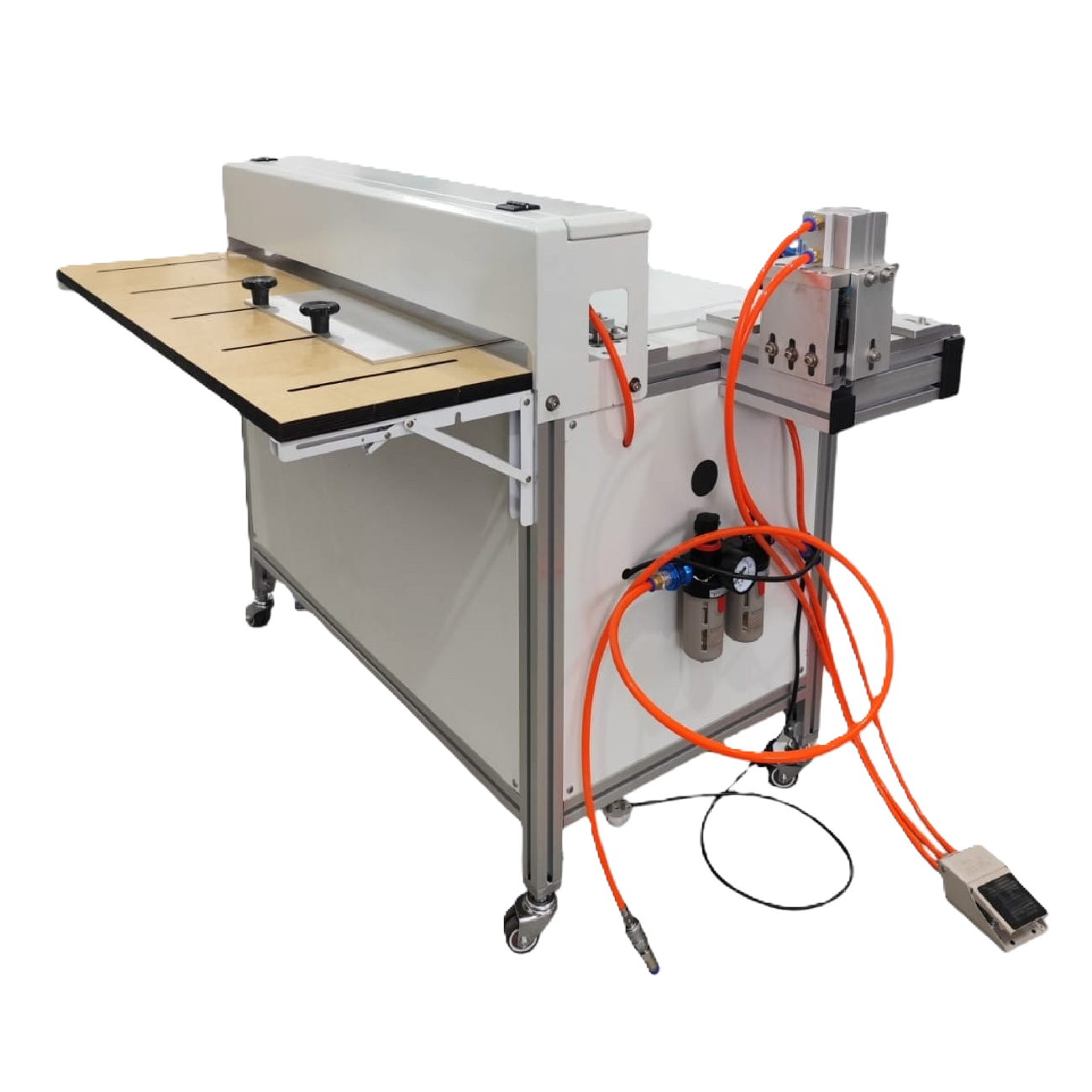

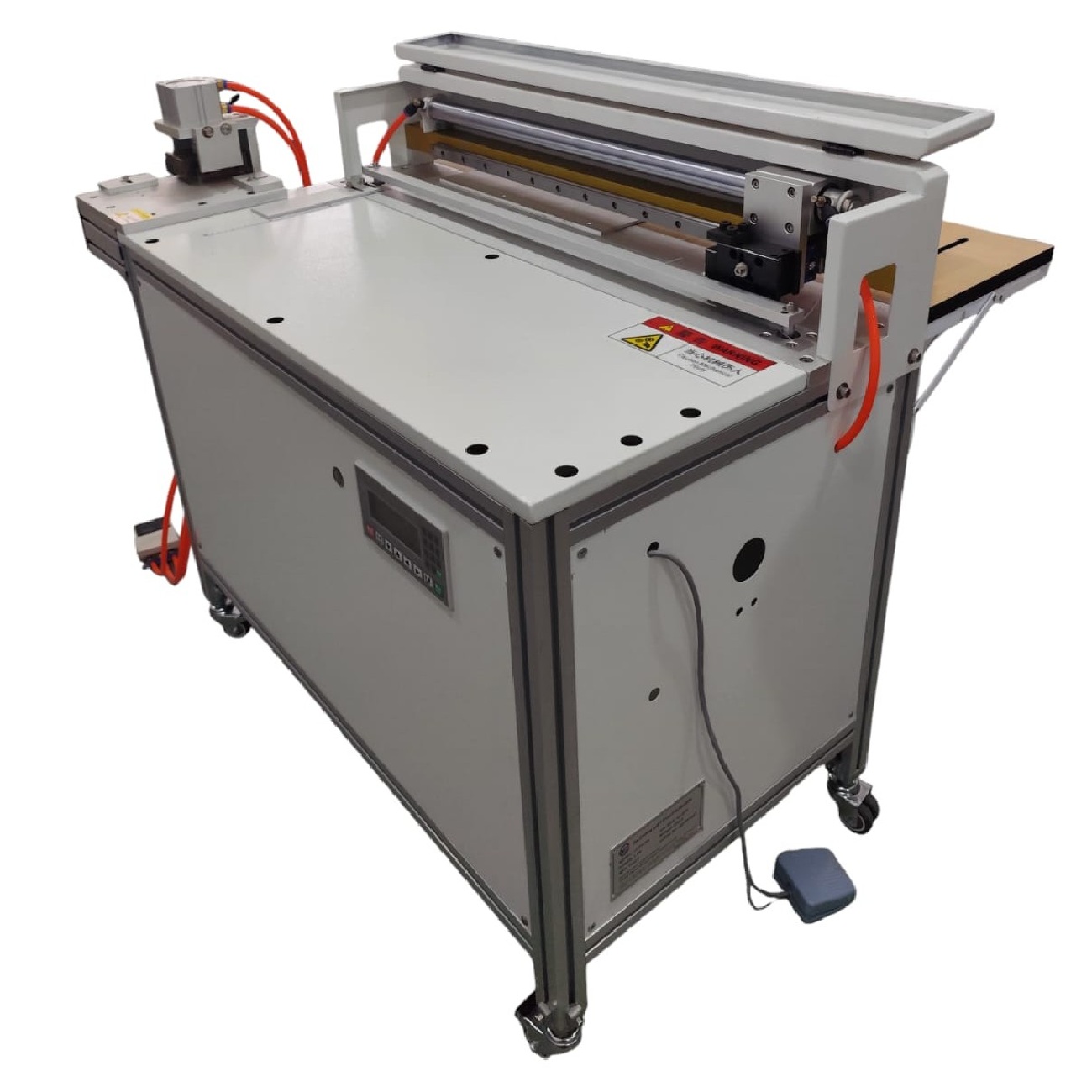

Manual Die Cutting & V Grooving Machine

This machine is mainly designed to cut four corners and V slots for paper greyboard, cardboard, MDF and other industrial paperboard. It is operated with high safety, strong hardness, strong wear resistance, light weight and can be easily operated.

SPECIFICATIONS

  • Dimension: 1200 mm X 500 mm X 950 mm
  • Machine Weight: 80 kg
  • Speed: 5 - 10 pcs/min
  • Grooving Angle: 80- 135 degree
  • Workable Width: 50 - 700 mm
  • Workable Length: 0 - 2000 mm
  • Board Thickness: 0.2 - 4 mm

Application:

Rigid Boxes
