Rigid Box Production

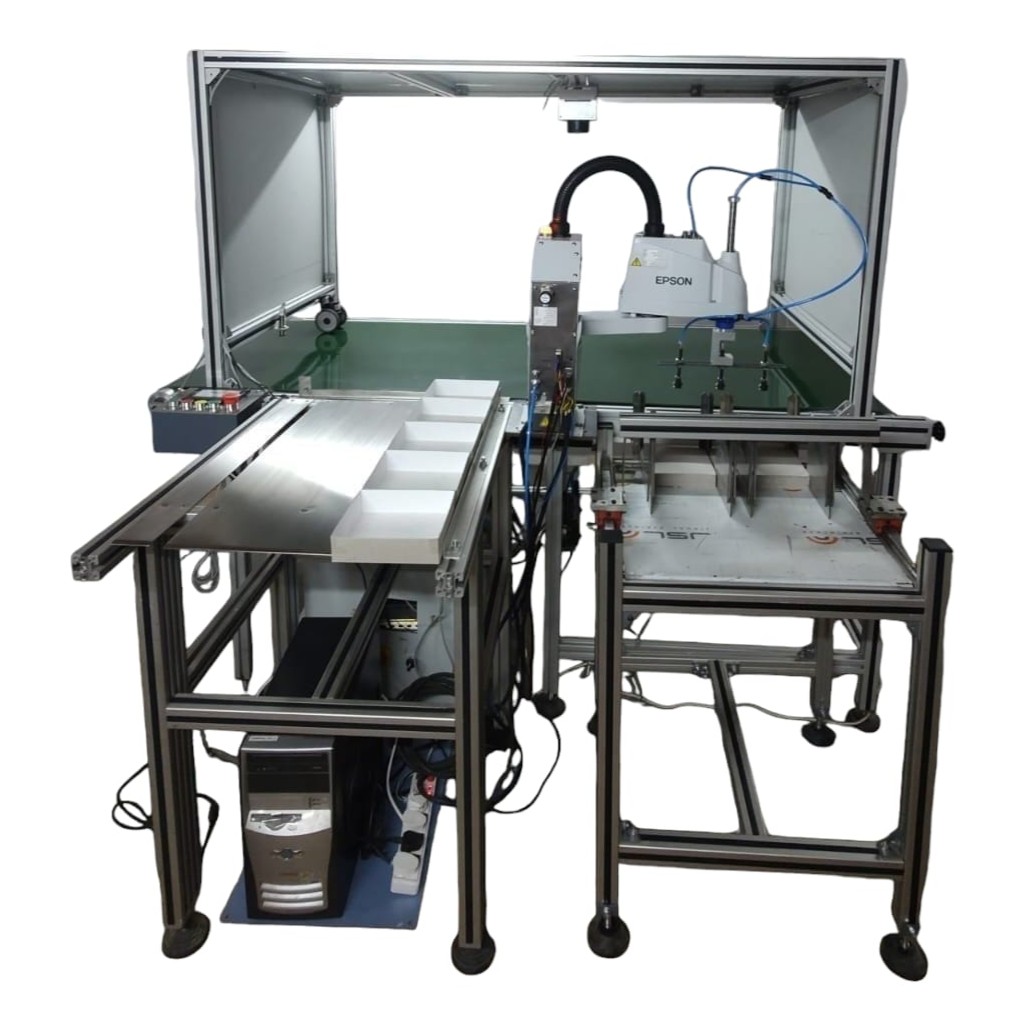

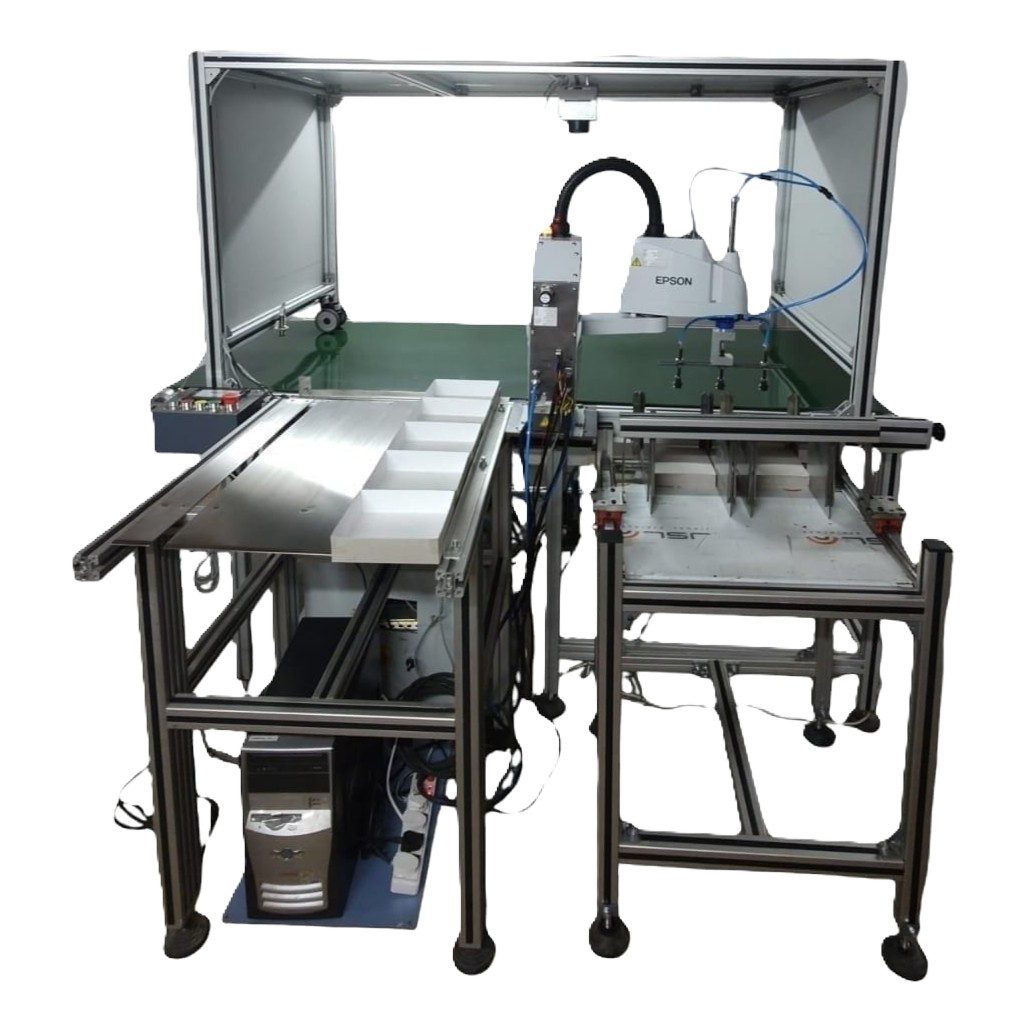

Robo Vision - Case & Tray

This system converts the gluing line into a 'Fully Automatic' Rigid Box making machine. This is an integrated system comprising of components such as Industrial Camera, 4-axis SCARA Robotic Arm, PLC, Proximity Sensor etc. At high speeds, system is capable of placing 'In-Register' on the conveyor. System is retrofittable to existing Gluing Conveyors.

SPECIFICATIONS

  • Max Box Size: 400 X 400 mm
  • Min Box Size: 100 X 100 mm
  • Board Thickness Range: 0.8 - 4 mm
  • Working Output: Upto 25 pcs/min

Application:

Rigid Boxes Case Making
