Rigid Box Making

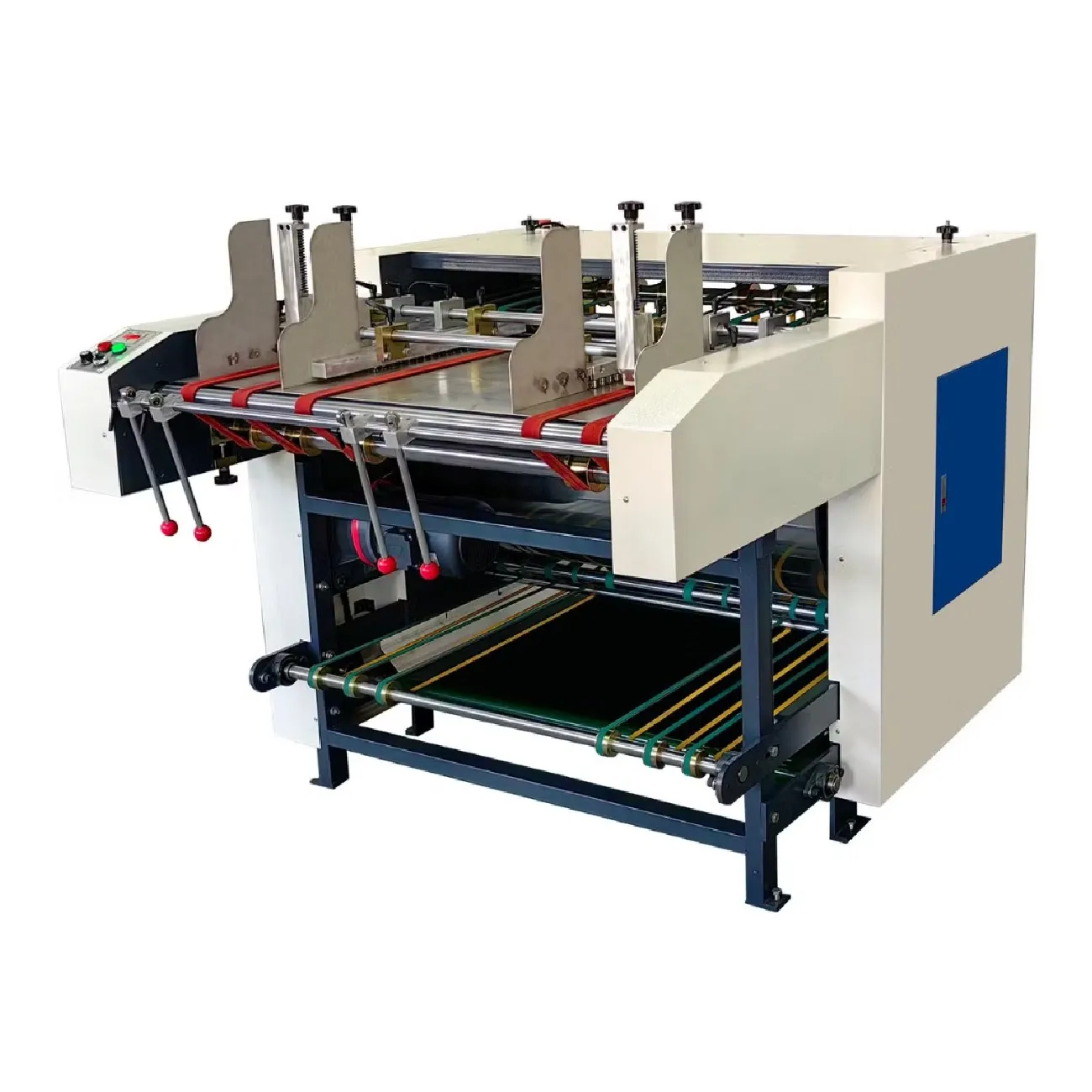

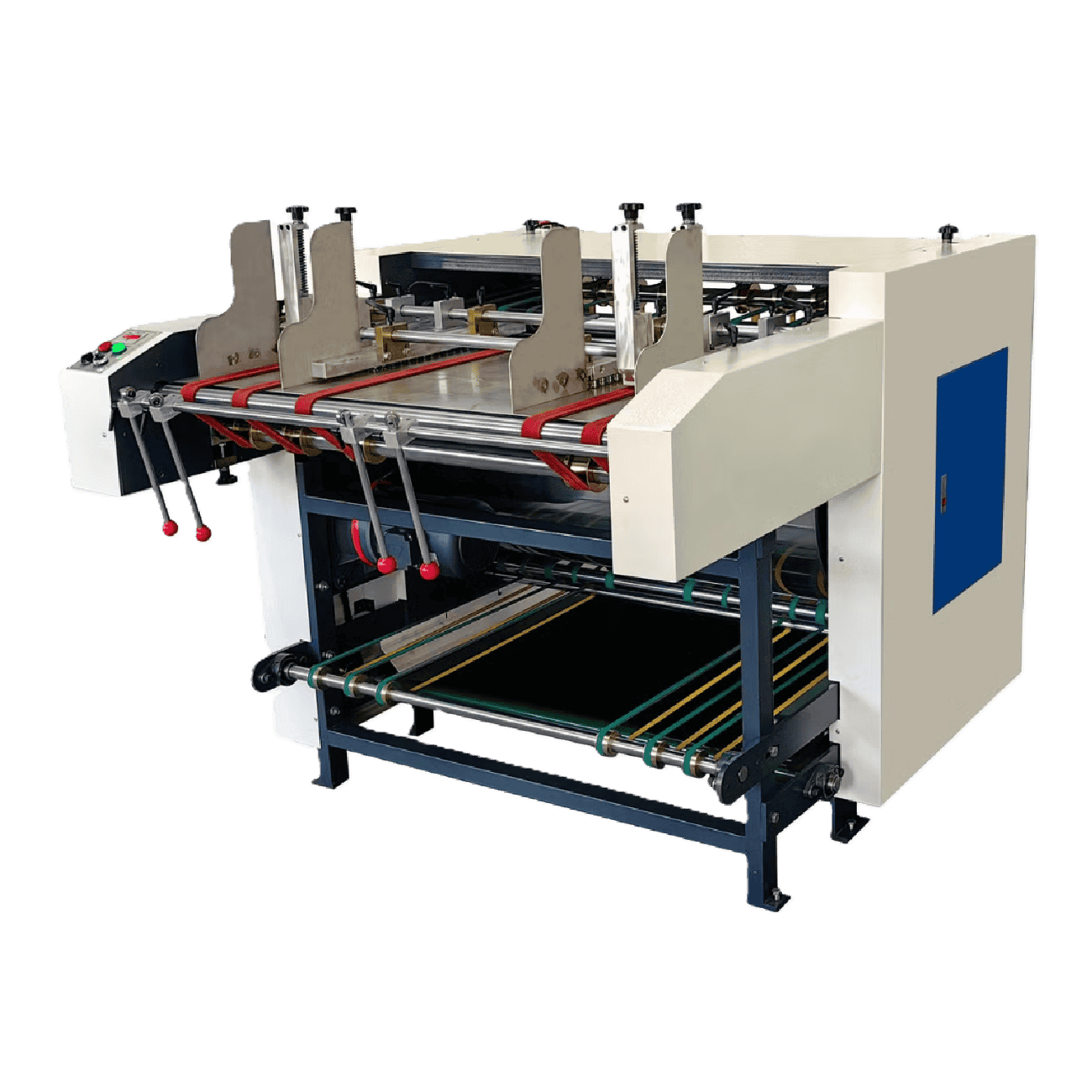

Automatic V Grooving Machine

YY-GM1100 Automatic Grooving Machine is mainly designed to groove V-slots for paper Grayboard, Cardboard and other Industrial Paperboard. lt fully automates all the processes as it's equipped with an Automatic Feeder, Automatic Waste Discharger and Automatic Finished Product Receiver.

SPECIFICATIONS

  • Board Width: 80 - 1100mm
  • Board Length: 8 lines
  • Board Thickness: 0.5 - 4mm
  • Space Between Slots: 0 - 1070mm
  • Grooving Angle: 85 - 140 degree
  • Working Speed: 60 - 80 pcs/min
  • Machine Size: 1800*1500*1440mm
  • Machine Weight: 1180 KG
  • Machine Power: 1.5 kW/AC220V

Application:

Rigid Boxes
