Box Batching and Collection Device at the delivery of a Folder Gluer.

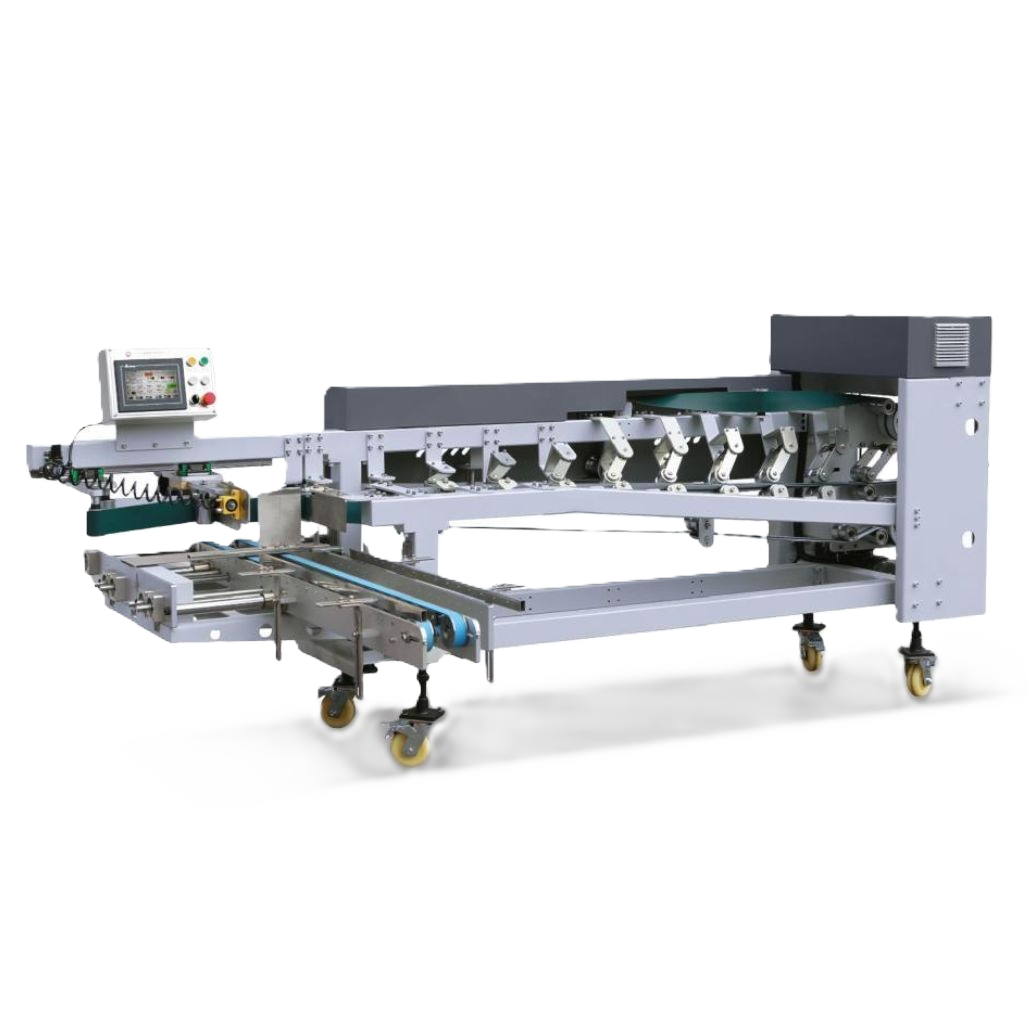

Automatic Stacker

Automatic stacker is the auxiliary box collection device which is linked with the end of Folder Gluer. With the transfer turning function, it realizes the 90°turn over conveying. It also increases the orderliness and tightness of the box when box comes collection step. With high-speed counting and collection, it can help reduce labor and improve final packing efficiency.

SPECIFICATIONS

  • Suitable Box: Straight line box, Double sides box, Crash lock bottom box, Four corner box, Fine flute corrugated box
  • Collection Width: 100 - 450 mm
  • Collection Length: 100 - 500 mm
  • Dimensions: 3550*2000*1350 mm (L*W*H)
  • Power: 1kW
  • Voltage: 220V, 3PH
  • Weight: About 600kgs
  • Compressed Air: 1 bar

Application:

Independent motor driven, can linked with any brand of folder gluer. Can collect many kinds of boxes, such as straight-line box, double sides box, crash lock bottom box, four corner box and fine flute corrugated box. Manual/Automatic dual mode, automatic mode can coordinate with folder gluer automatically, no need manual adjustment. Horizontal delivery platform can be electrically adjusted to fit different size boxes.
