KEOS 112M is a single pass industrial inkjet engine ready to use for customization of machines.

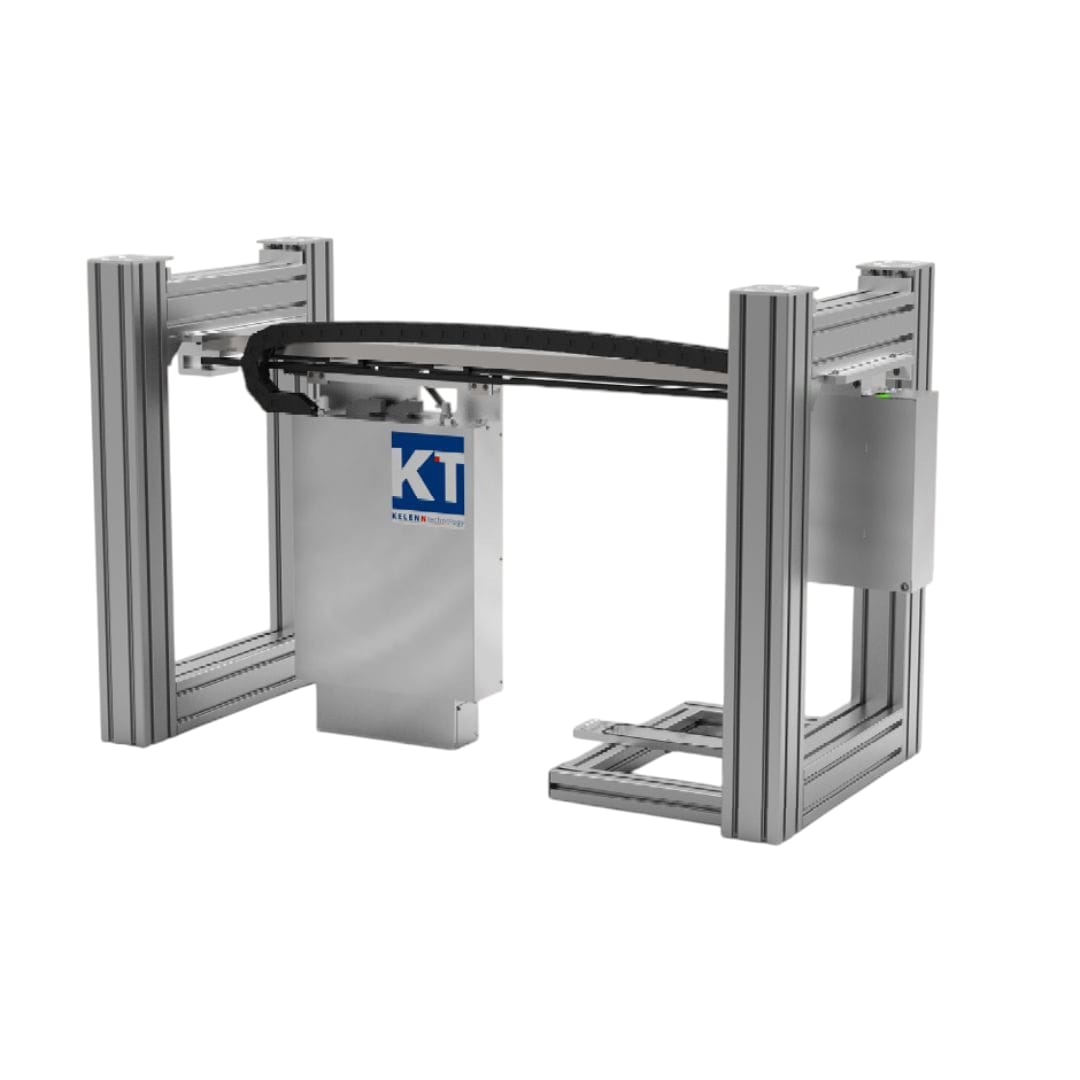

KEOS 112MWB-Monochrome Inkjet Print Engine

It enables OEMs and integrators to create high speed cost effective solutions. KEOS 112M comes with:
1. a frame to be mounted on the machine,
2. a full featured KEOS print head slice,
3. a separate ink station to be installed in the machine or as a stand alone cabinet
4. a print controller
5. a RIP software

1. Print Head Specifications

  • Inkjet : Piezoelectric
  • Single pass print width : 112 m
  • Native Resolution : 1200 dpi
  • Resolution Range : 1200 x 600 dpi @150 m/mn 1200 x 1200 dpi @75 m/mn
  • Ink : Water based - dye or pigment
  • Drop volume range : 1.5 - 6 picoliter with grey-scale

2. Assembly

  • Number of print head slices : 1 slice. Total printable width 350 mm, can be extended to any width by adding slices and / or extending frame size
  • Frame Footprint : W 1200 mm , L430 mm, H 700 mm
  • Power Supply : 240 V, 80 VA
  • Transverse direction positioning of the print head: Yes
  • Z positioning of the print head : Yes
  • Interfaces : Ethernet; Page Trigger sensor , Encoder 1200 dpi
  • Total weight of the printer : 34 KG

3. Software

  • Smart KPM print controller : Spooling, printer and production setup, status. Option Read and print.
  • Smart VDG variable data generator : Layout editor, variable data merge and spool generator
  • PDF RIP : Monochrome or Color, multi-page
  • RIP : BMP, TIF, JPEG

4. Computers

  • Processing unit : data flow
  • software server : Controls data flow for upto 8 slices. Can be attached to the Ink station.
  • RIP Processing : TBD upon RIP options and customer’s architecture
  • Operator control panel : 23 computer screen, Ethernet connection with processing unit and slices

5. Ink Station

  • Ink Tank : 1 unit of 4 L. Online non stop refill. Low level sensor.
  • Waste Tank : 1 unit of 4 L. High level sensor.
  • Flush Tank : 1 unit of 4 L

Application:

For roll to roll and sheet fed systems. To print on paper, PET and so on.
